【SG】SUPER GROUND RULE
Cutting Rules

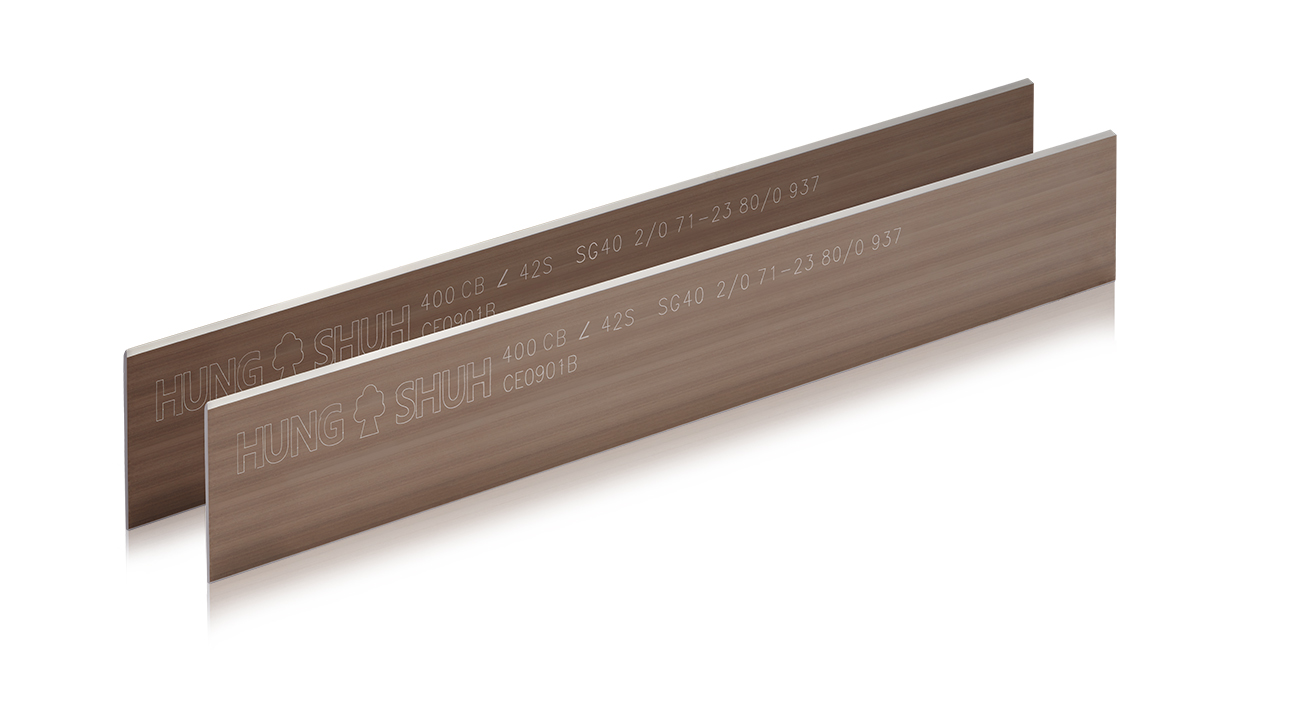

Super Ground Rule
・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.
Applications:
PE, PET, PVC, PP, other Plastics, Thermoforming packaging, Blister pack, Food container, Laminated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin polywood sheet, Flexible Printed Circuit, Carbon fiber cloth, and gasket(seal)
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.
Applications:
PE, PET, PVC, PP, other Plastics, Thermoforming packaging, Blister pack, Food container, Laminated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin polywood sheet, Flexible Printed Circuit, Carbon fiber cloth, and gasket(seal)
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Flexible printed circuits
Type SG
RFID
Type SG
LCD panel
Tyep SG
Graphene textile
Type SG
Tempered glass protector
Type SG
Medical box, Luxury Cosmetic box
Type SG

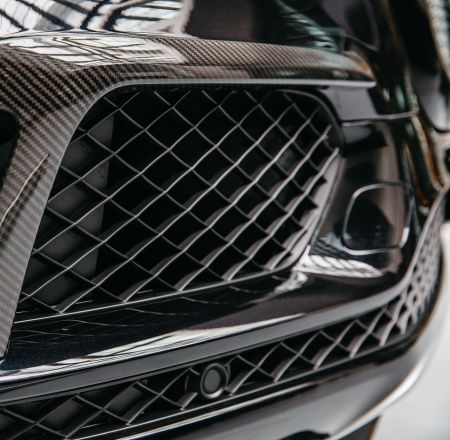

Cabon fiber
Type SG

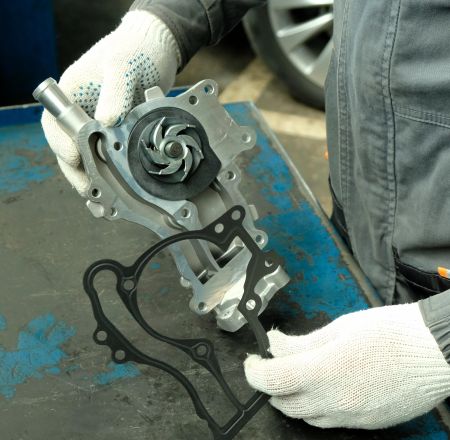

Seal, Gasket, Packing
Type SG

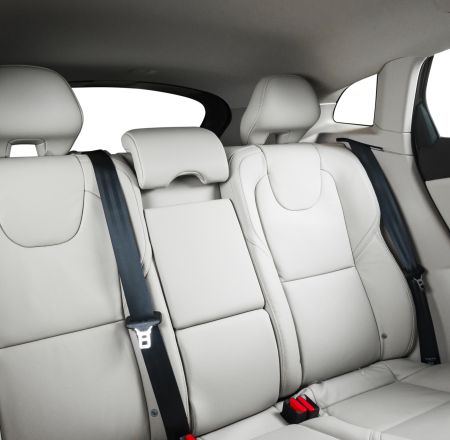

Leather, Synthetic leather
Type SG
Non-Woven Fabric, Felt
Type SG

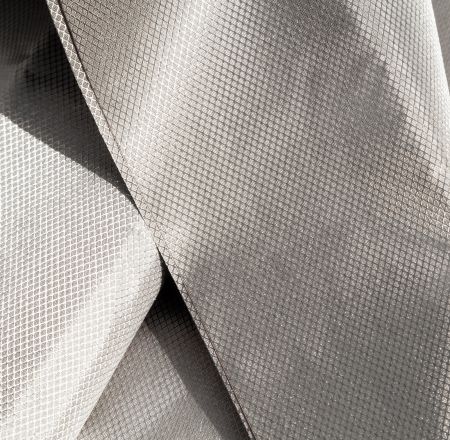

Conductive Cloth
Type SG
