【HSG】HIGH RULE with SUPER GROUND BEVEL
Cutting Rules
Types

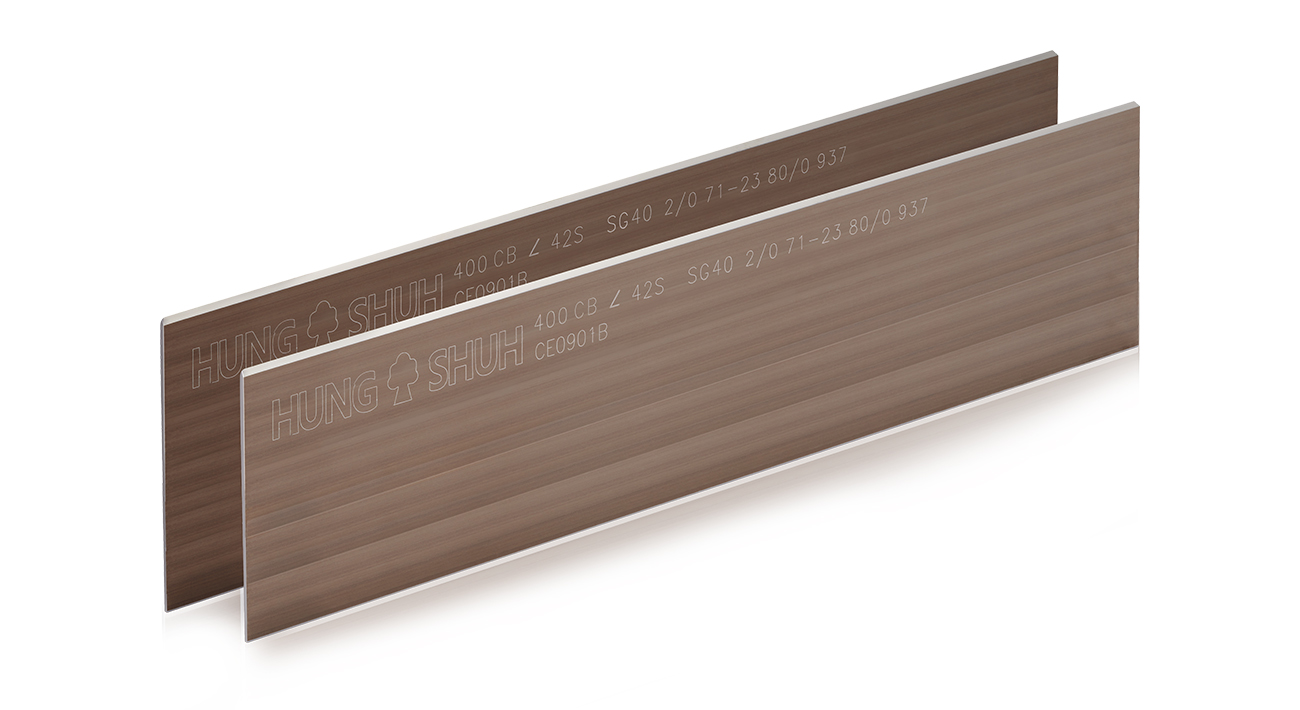

【HSG】HIGH RULE with SUPER GROUND BEVEL
High Rule with Superfine Ground Bevel
・Can cut a diverse range of materials, particularly those that are thicker in nature.
・Reduce cutting friction
Applications:
Cushion packaging(EVA & EPE), Sponges, Corrugated carton, Blister Packaging, Thermoforming Packaging
・Reduce cutting friction
Applications:
Cushion packaging(EVA & EPE), Sponges, Corrugated carton, Blister Packaging, Thermoforming Packaging
Hight Rule for Super Ground Finish |
| TYPE | HSG |
|---|---|

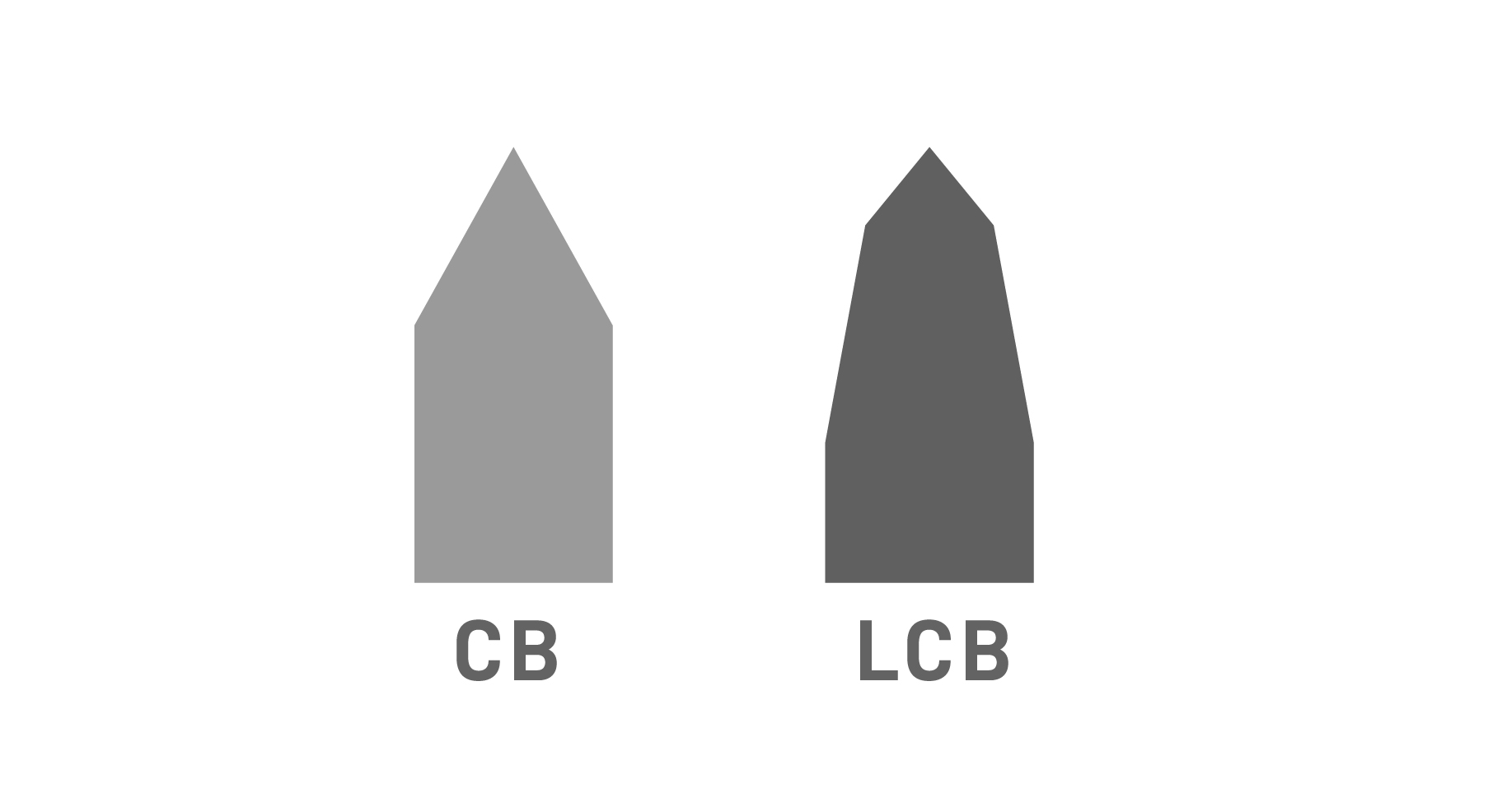

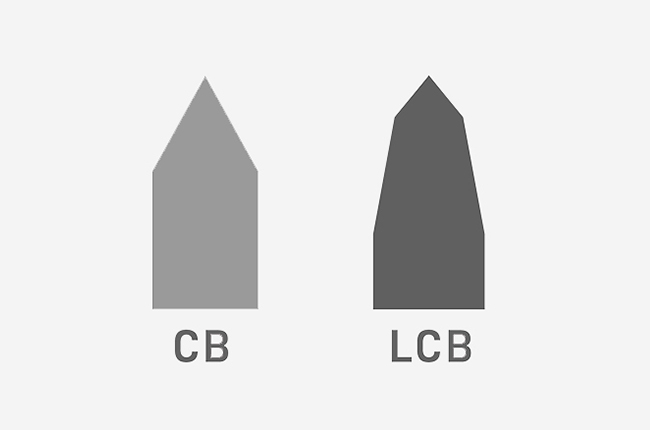

| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、 1.42mm(4pt) |

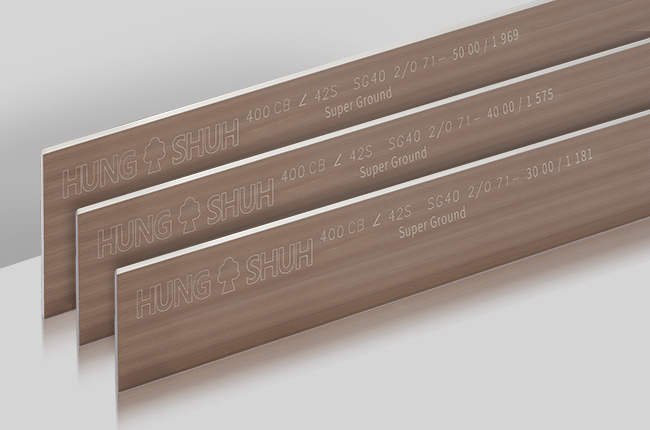

| Height | 30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |

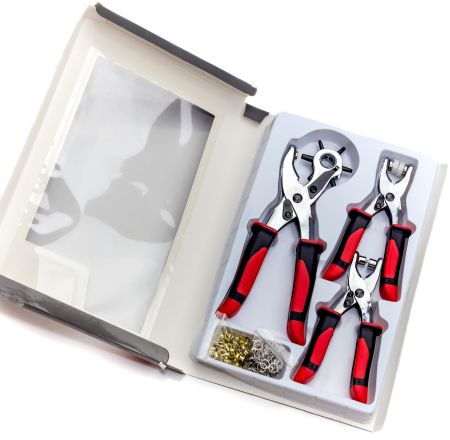

Blister pack / Blister-Polyester
Type HSG

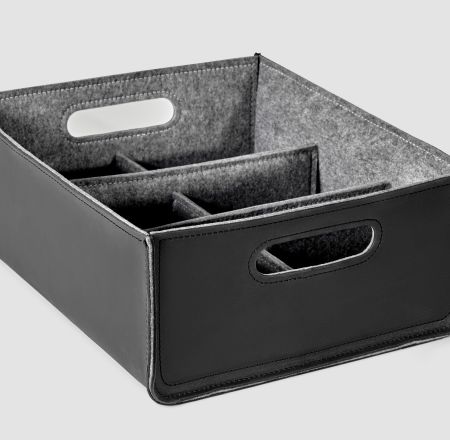

Non-Woven Fabric, Felt
Type HSG

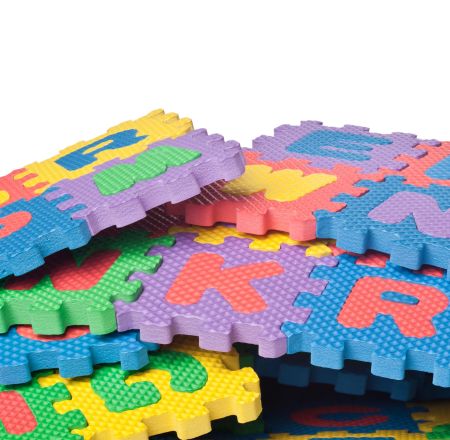

Cushion, Sponge
Type HSG

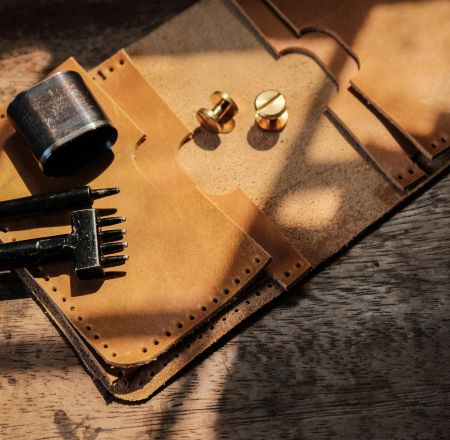

Leather, Synthetic leather
Type HSG
