【C】SHAVED RULE - CB
Cutting Rules

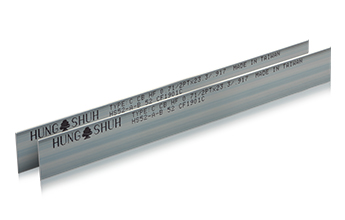

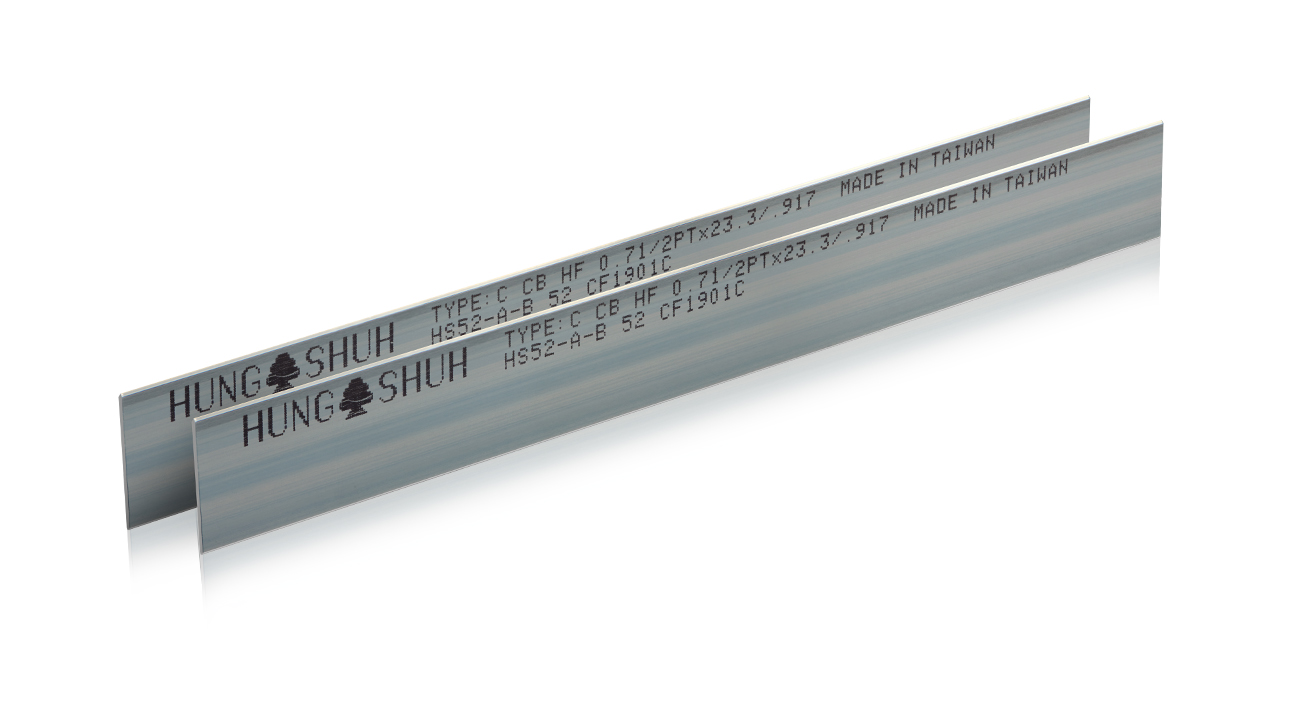

Shaved Rule - Type C
・Fantastic bendability.
・Precision meets customers’ needs.
・Long-life press work.
・High cost efficiency.
Applications:Cardboards, Paperboards, Stickers, Sponges, Paper containers, Laminated box, Plastic bag, Paper food container, EPE and Corrugated carton
・Precision meets customers’ needs.
・Long-life press work.
・High cost efficiency.
Applications:Cardboards, Paperboards, Stickers, Sponges, Paper containers, Laminated box, Plastic bag, Paper food container, EPE and Corrugated carton
Shaved Rule |
| TYPE | C |
|---|---|

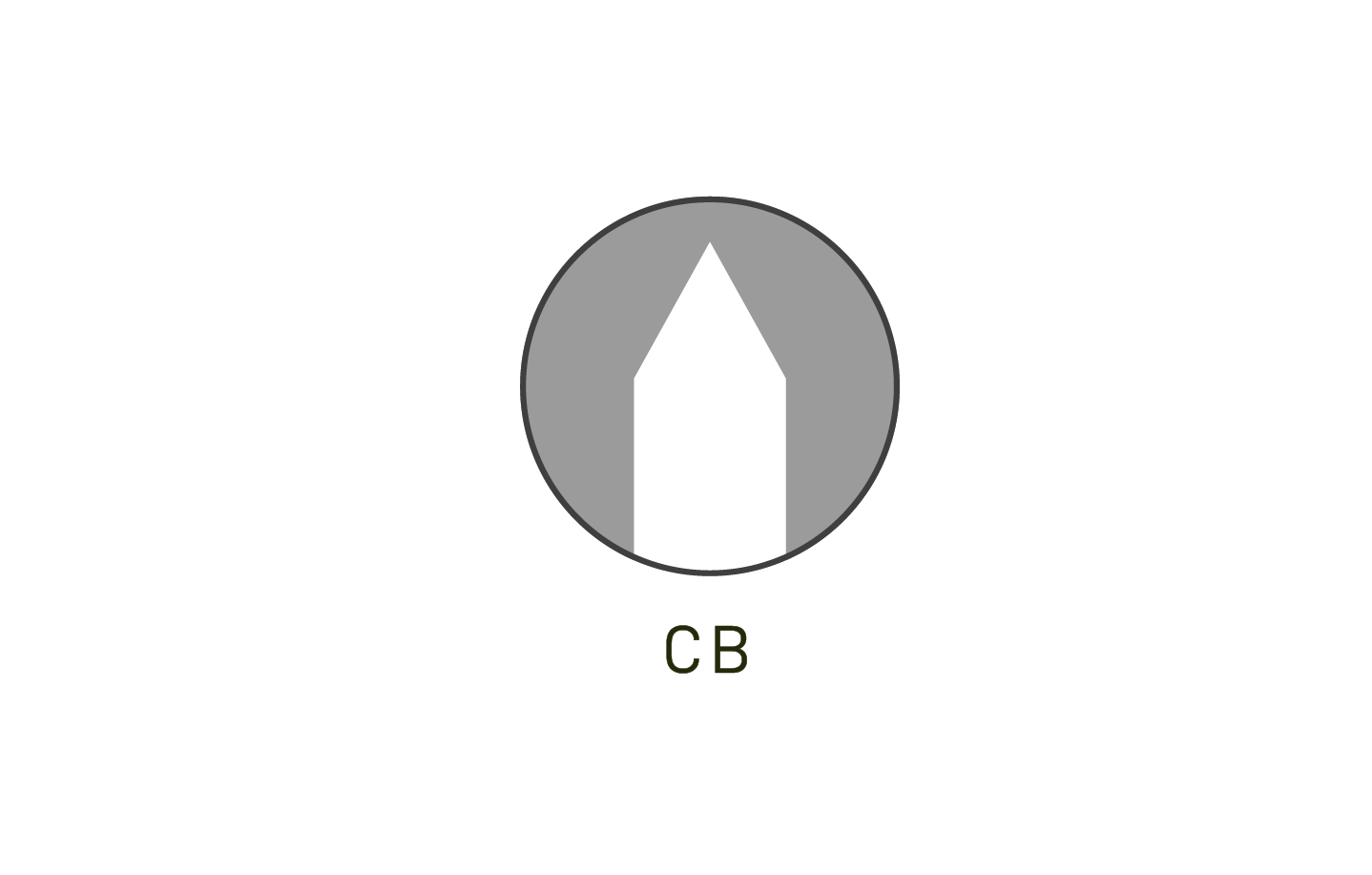

| Bevel type | CB (Center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897") ～ 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380 / HRC32,34,38 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Color box
Type C
Corrugated Paper/Box
Type C
