Cutting Rules

Cushion, Sponge

Our Recommendation Knife
Type SG、Type GR、Type S、Type HSG、Type H

Applications

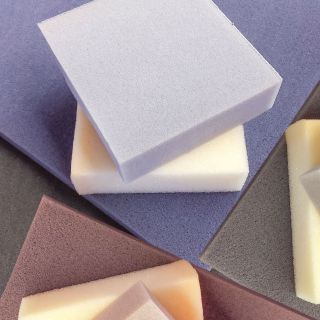

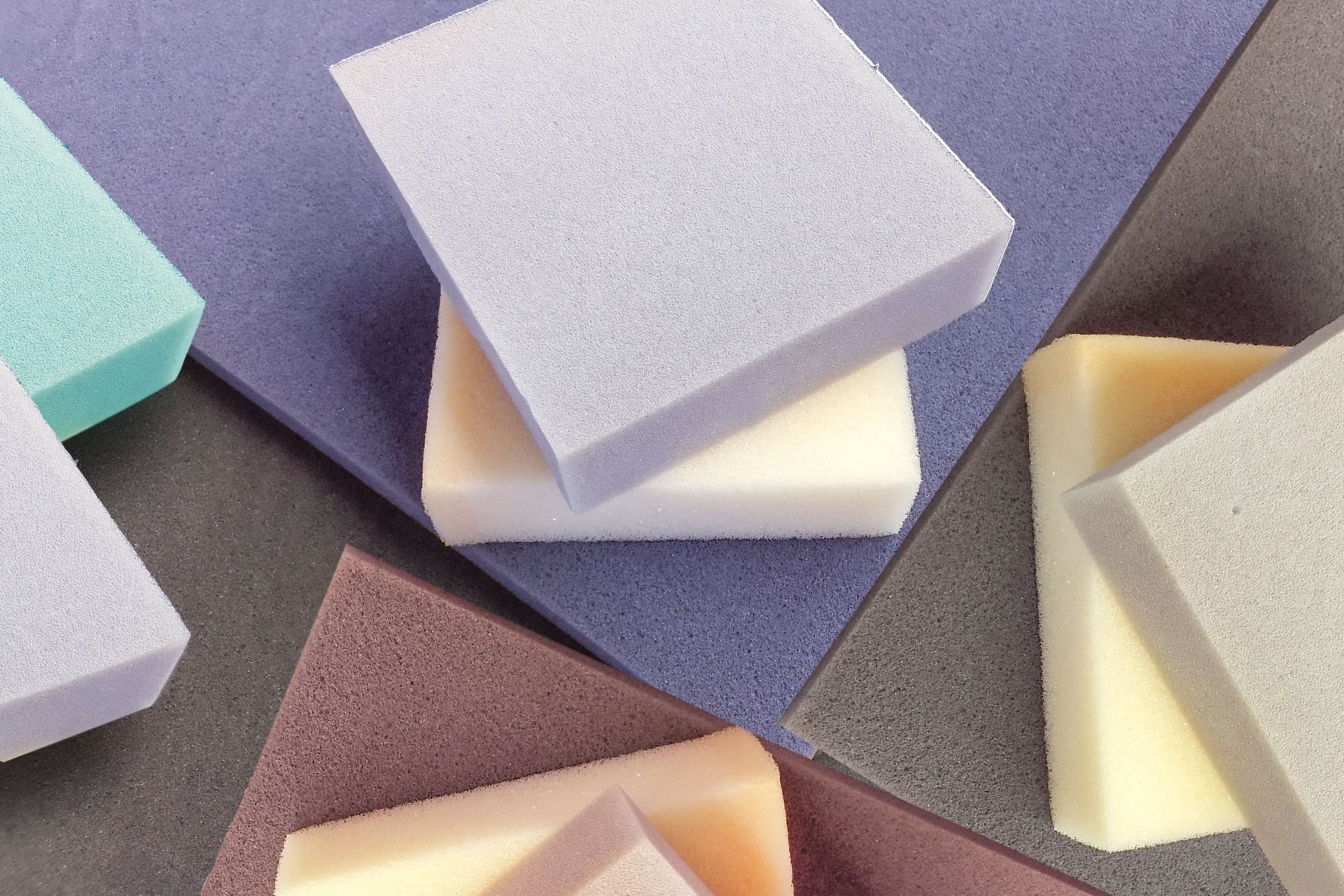

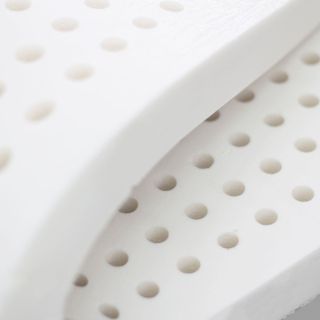

・Urethane foam
・Silicone sponge

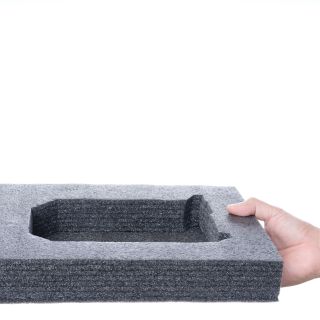

・Polyethylene foam
・EVA foam
・EPDM Spnge

Characteristics　
・Thick material
・High elasticity

Share：

inquiry

Feature
Specification

Type GR - Ground Rule

・Significantly reducing cutting force.
・Reduce dusting and angel hair.
・Offer clear and precise cut.
・Suitable for hard or elasticity material.

Applications:
Plastics, Laminated paperboards, and Leathers

Super Ground Rule

TYPE	SG
Bevel type	CB (Center bevel) , LCB (Long center bevel)
Thickness	0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height	23.60mm (.929"), 23.80mm (.937")
Angle	∠42°、52°
Body hardness	HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Ground Rule

TYPE	GR
Bevel type	CB (Center bevel) , LCB (Long center bevel)
Thickness	0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	23.60mm (.929"), 23.80mm (.937")
Angle	∠42°、52°
Body hardness	HV320,340,380,400 / HRC32,34,38,40
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Side Bevel Rule

TYPE	S
Bevel type	SB (Side bevel) , LSB (Long Side bevel)
Thickness	0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	23.60mm (.929"), 23.80mm (.937")
Angle	∠42°、51°、52°
Body hardness	HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

High Rule with Superfine Ground Bevel

TYPE	HSG
Bevel type	CB (Center bevel) , LCB (Long center bevel)
Thickness	0.71mm (2pt)、1.06mm (3pt)
Height	30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968")
Angle	∠42°、52°
Body hardness	HV320,340,380,400 / HRC32,34,38,40
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Hight Rule

TYPE	H
Bevel type	CB (Center bevel) , LCB (Long center bevel)
Thickness	0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968")
Angle	∠42°、52°
Body hardness	HV320,340,380,400 / HRC32,34,38,40
Edge hardness	HV600,640,670,700 / HRC55,58,59,60
