Cutting Rules
Corrugated Paper/Box
Our Recommendation
Type SG、Type GR、Type D、Type C、Type E
Application Types

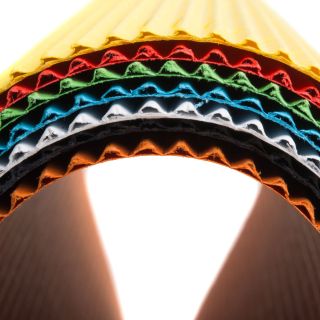

▸A-flute
・Good buffering & elastic
▸B-flue
・Structurally made by high density with good compressive strength.
・Good for printing application.
▸E-flute
・Very thin with high density, providing better compressive strength.
Type SG、Type GR、Type D、Type C、Type E
Application Types
▸A-flute
・Good buffering & elastic
▸B-flue
・Structurally made by high density with good compressive strength.
・Good for printing application.
▸E-flute
・Very thin with high density, providing better compressive strength.
Type D - Shaved Rule
・Commonly used and widely adopted.
・The innovative Long Center Bevel design minimizes cutting friction.
・Precise processing provides consistent height, minimizing the patch-up time.
・Edge hardening ensures long cutting life.
Applications:
Cardboards, Paperboards, Stickers, Sponges, Paper containers
・The innovative Long Center Bevel design minimizes cutting friction.
・Precise processing provides consistent height, minimizing the patch-up time.
・Edge hardening ensures long cutting life.
Applications:
Cardboards, Paperboards, Stickers, Sponges, Paper containers
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Ground Rule |
| TYPE | GR |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Shaved Rule |
| TYPE | D |
|---|---|
| Bevel type | LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897") ～ 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380 / HRC32,34,38 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Shaved Rule |
| TYPE | C |
|---|---|
| Bevel type | CB (Center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897") ～ 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380 / HRC32,34,38 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Shaved Rule |
| TYPE | E |
|---|---|
| Bevel type | DR (Double Round) / SR (Single Round) / SF (Special facet) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897"), 23.10mm(.909") |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
RECOMMENDATION
Color box
Type D
