Cutting Rules
Textile fabric
Our Recommendation
Type SG、Type GR
Characteristics
・Laminated by PP or PE
・99% paper+1% plastic lamination
・Acid-alkali resistance & oil resistance
Type SG、Type GR
Characteristics
・Laminated by PP or PE
・99% paper+1% plastic lamination
・Acid-alkali resistance & oil resistance

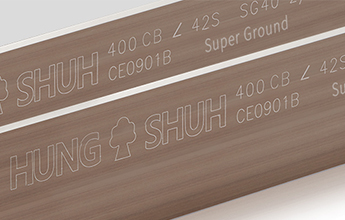

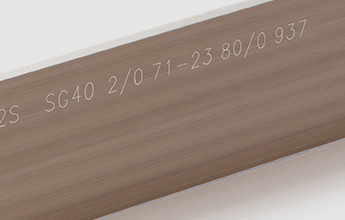

Type SG - Super Ground Rule
・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.
Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.
Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Ground Rule |
| TYPE | GR |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
