Cutting Rules

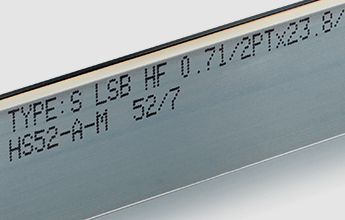

Type S - Side Bevel Rule
・Straight cutting surface and precise cutting point.
・Suitable for thick materials.
Applications:
Sticky Notes, Leathers, EVA, EPE, Puzzles and Facial Masks
・Suitable for thick materials.
Applications:
Sticky Notes, Leathers, EVA, EPE, Puzzles and Facial Masks
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Side Bevel Rule |
| TYPE | S |
|---|---|
| Bevel type | SB (Side bevel) , LSB (Long Side bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、51°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
RECOMMENDATION
Non-Woven Fabric, Felt
Type S
Seal, Gasket, Packing
Type S
