Cutting Rules

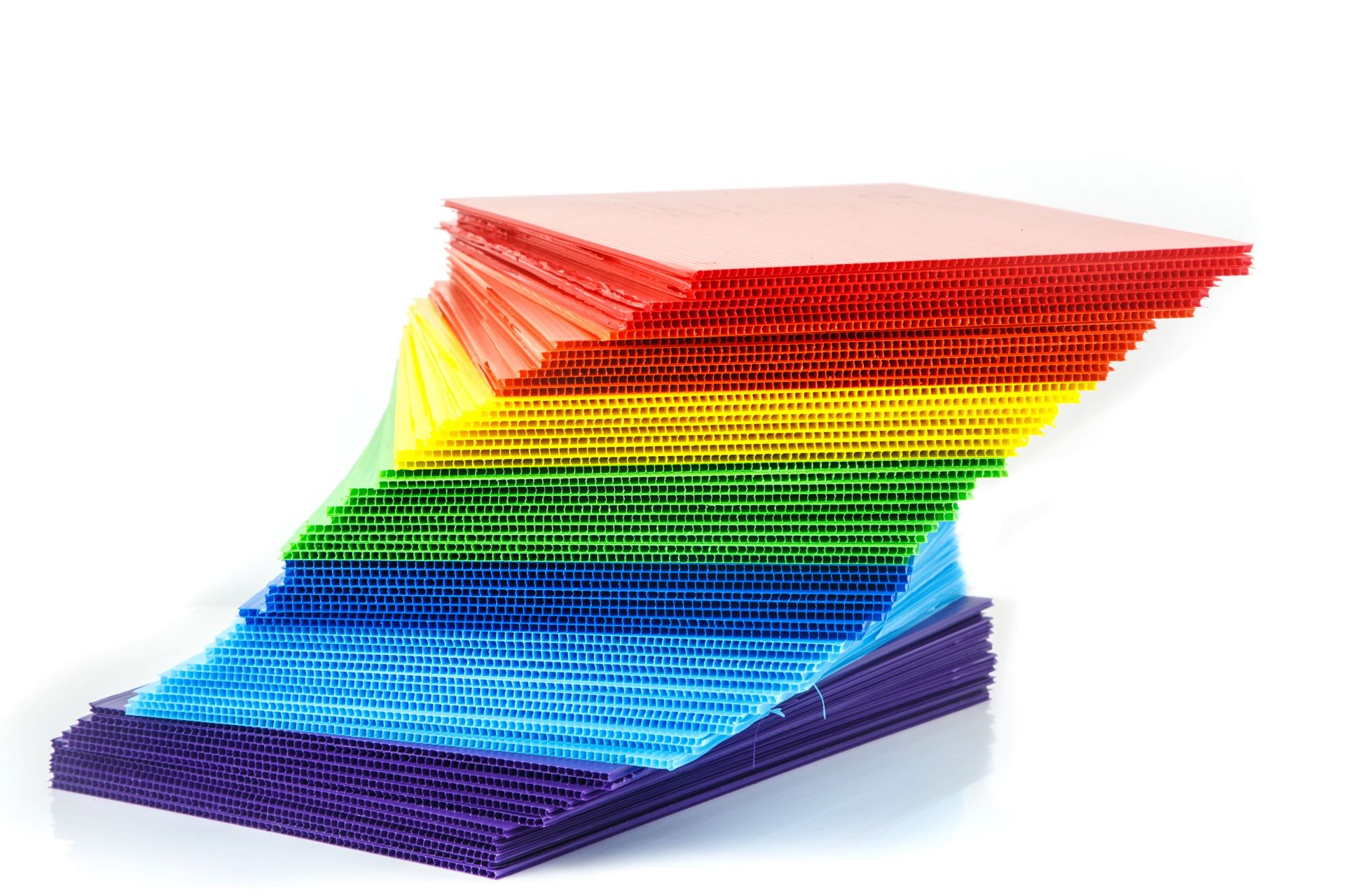

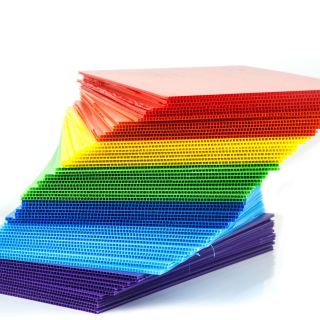

Plastic cardboard
Our Recommendation
Type SG、Type E
Characteristics
・Non-toxic & Moisture-proof & Corrosion resistance
・Lightweight, Tough-&-Durable, Stretch Resistance, High-Tear-Strength
Type SG、Type E
Characteristics
・Non-toxic & Moisture-proof & Corrosion resistance
・Lightweight, Tough-&-Durable, Stretch Resistance, High-Tear-Strength

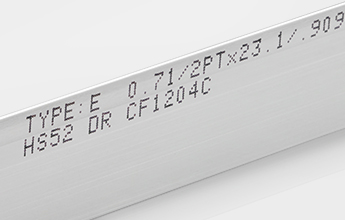

Type E - Creasing Rule
・Excellent radius profile.
・Very smooth creasing head.
・Minimum height tolerance.
Applications:
Packaging Containers, Plastic Boxes and Blisters.
・Very smooth creasing head.
・Minimum height tolerance.
Applications:
Packaging Containers, Plastic Boxes and Blisters.
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Creasing Rule |
| TYPE | E |
|---|---|
| Bevel type | DR (Double Round) / SR (Single Round) / SF (Special facet) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897"), 23.10mm(.909") |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
