Cutting Rules

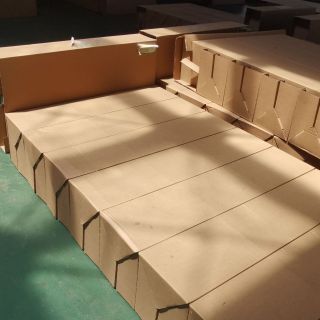

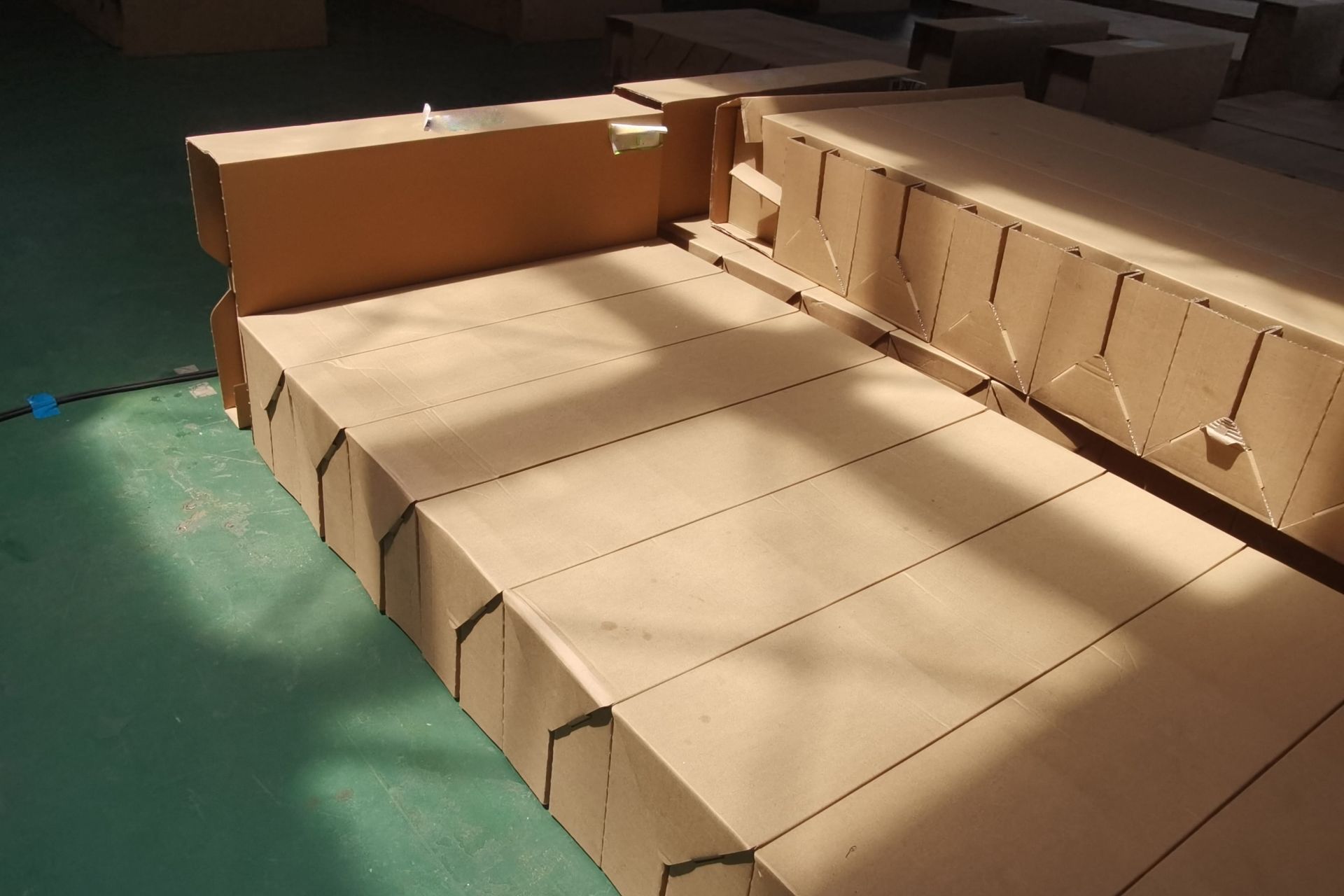

Corrugated Paper/Box

Our Recommendation
Type SG、Type GR、Type D、Type C、Type E

Application Types

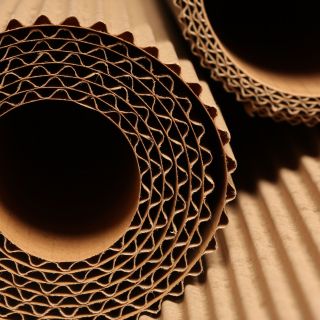

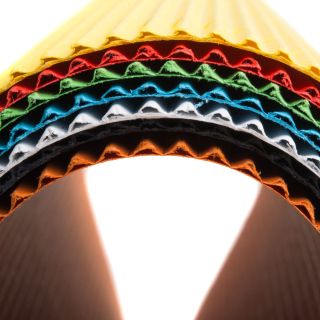

▸A-flute
・Good buffering & elastic
▸B-flue
・Structurally made by high density with good compressive strength.
・Good for printing　application.
▸E-flute
・Very thin with high density, providing better compressive strength.

Share：

inquiry

Feature
Specification

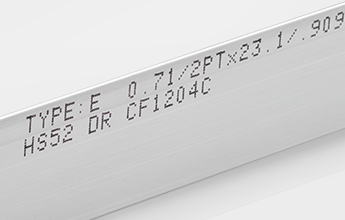

Type E - Creasing Rule

・Excellent radius profile.
・Very smooth creasing head.
・Minimum height tolerance.

Applications:
Packaging Containers, Plastic Boxes and Blisters.

Super Ground Rule

TYPE	SG
Bevel type	CB (Center bevel) , LCB (Long center bevel)
Thickness	0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height	23.60mm (.929"), 23.80mm (.937")
Angle	∠42°、52°
Body hardness	HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Ground Rule

TYPE	GR
Bevel type	CB (Center bevel) , LCB (Long center bevel)
Thickness	0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	23.60mm (.929"), 23.80mm (.937")
Angle	∠42°、52°
Body hardness	HV320,340,380,400 / HRC32,34,38,40
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Shaved Rule

TYPE	D
Bevel type	LCB (Long center bevel)
Thickness	0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	22.80mm (.897") ～ 23.80mm (.937")
Angle	∠42°、52°
Body hardness	HV320,340,380 / HRC32,34,38
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Shaved Rule

TYPE	C
Bevel type	CB (Center bevel)
Thickness	0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	22.80mm (.897") ～ 23.80mm (.937")
Angle	∠42°、52°
Body hardness	HV320,340,380 / HRC32,34,38
Edge hardness	HV600,640,670,700 / HRC55,58,59,60

Shaved Rule

TYPE	E
Bevel type	DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness	0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height	22.80mm (.897"), 23.10mm(.909")
Body hardness	HV320,340,380,400,450 / HRC32,34,38,40,45
