Cutting Rules
Leather, Synthetic leather
Our Recommendation
Type SG、Type GR、 Type S、Type HSG、Type H
Applications
・car seat
・Sporting goods
・Accessories
Material
・PVC
・PU
・TPU
・TPO
Characteristics
・PVC leather: Hardens easily and becomes brittle
・PU leather: no abrasion resistance
・Genuine leather: high elasticity
Type SG、Type GR、 Type S、Type HSG、Type H
Applications
・car seat
・Sporting goods
・Accessories
Material
・PVC
・PU
・TPU
・TPO
Characteristics
・PVC leather: Hardens easily and becomes brittle
・PU leather: no abrasion resistance
・Genuine leather: high elasticity

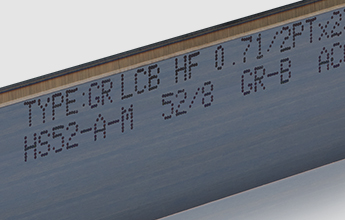

Type GR - Ground Rule
・Significantly reducing cutting force.
・Reduce dusting and angel hair.
・Offer clear and precise cut.
・Suitable for hard or elasticity material.
Applications:
Plastics, Laminated paperboards, and Leathers
・Reduce dusting and angel hair.
・Offer clear and precise cut.
・Suitable for hard or elasticity material.
Applications:
Plastics, Laminated paperboards, and Leathers
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Ground Rule |
| TYPE | GR |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Side Bevel Rule |
| TYPE | S |
|---|---|
| Bevel type | SB (Side bevel) , LSB (Long Side bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、51°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
High Rule with Superfine Ground Bevel |
| TYPE | HSG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt) |
| Height | 30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Hight Rule |
| TYPE | H |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
