Cutting Rules

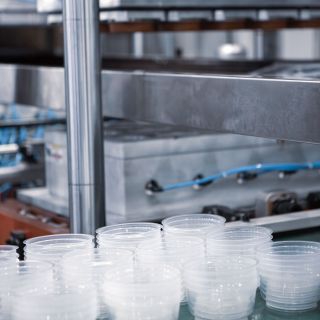

Blister pack / Blister-Polyester
Our Recommendation
Type SG、Type GR、Type S、Type HSG、Type H、Type E
Application
・PET
・PP
・PVC
・PE
・OPS
Type SG、Type GR、Type S、Type HSG、Type H、Type E
Application
・PET
・PP
・PVC
・PE
・OPS
Type S - Side Bevel Rule
・Straight cutting surface and precise cutting point.
・Suitable for thick materials.
Applications:
Sticky Notes, Leathers, EVA, EPE, Puzzles and Facial Masks
・Suitable for thick materials.
Applications:
Sticky Notes, Leathers, EVA, EPE, Puzzles and Facial Masks
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Ground Rule |
| TYPE | GR |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Side Bevel Rule |
| TYPE | S |
|---|---|
| Bevel type | SB (Side bevel) , LSB (Long Side bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、51°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Hight Rule for Super Ground Finish |
| TYPE | HSG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt) |
| Height | 30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Hight Rule |
| TYPE | H |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Creasing Rule |
| TYPE | E |
|---|---|
| Bevel type | DR (Double Round) / SR (Single Round) / SF (Special facet) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897"), 23.10mm(.909") |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
RECOMMENDATION
Tempered glass protector
Type S
Non-Woven Fabric, Felt
Type S
