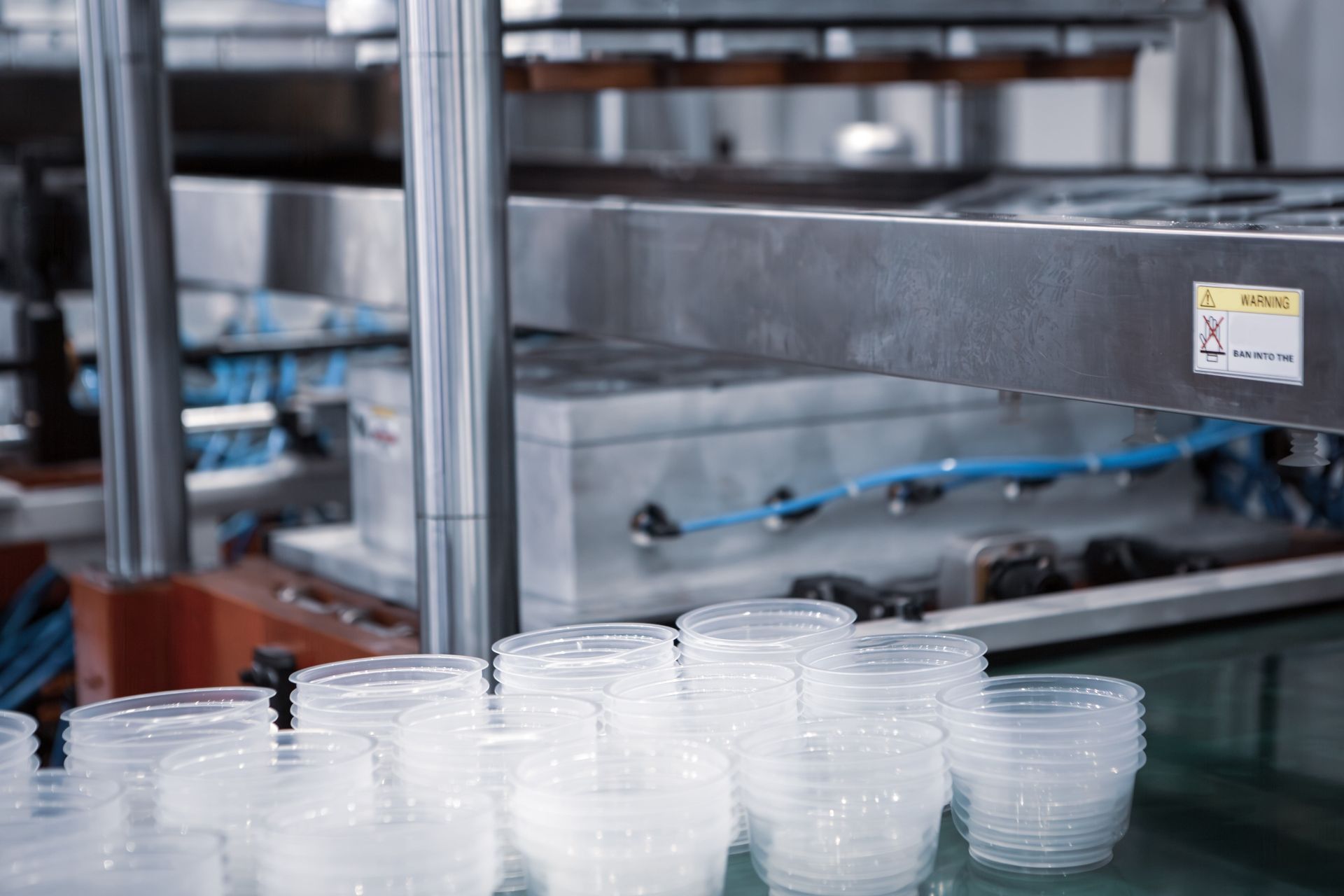

Blister pack / Blister-Polyester

Our Recommendation
Type SG、Type GR、Type S、Type HSG、Type H、Type E

Application
・PET
・PP
・PVC
・PE
・OPS
Share：
inquiry

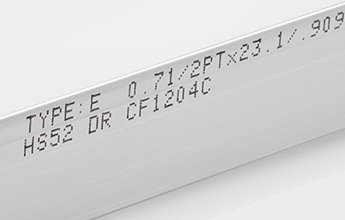

TYPE E

Type E - Creasing Rule

・Excellent radius profile.
・Very smooth creasing head.
・Minimum height tolerance.

Applications:
Packaging Containers, Plastic Boxes and Blisters.

Super Ground Rule
TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule
TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Side Bevel Rule
TYPE S
Bevel type SB (Side bevel) , LSB (Long Side bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、51°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Hight Rule  for Super Ground Finish
TYPE HSG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)
Height 30mm (1.181"),  32mm (1.26"),  35mm (1.377"),  40mm (1.574"),  50mm(1.968")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Hight Rule
TYPE H
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 30mm (1.181"),  32mm (1.26"),  35mm (1.377"),  40mm (1.574"),  50mm(1.968")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Creasing Rule
TYPE E
Bevel type DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897"),  23.10mm(.909")
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45


RECOMMENDATION

Medical box, Luxury Cosmetic box

Medical box, Luxury Cosmetic box

Type E

Plastic cardboard

Plastic cardboard

Type E

Paper tableware container

Paper tableware container

Type E
