トムソン刃
Features:
✔ Perfect cutting surface, sharp and durable.
✔ Minimal tip roughness for smoother cutting.
✔ Excellent bending capability for versatility.

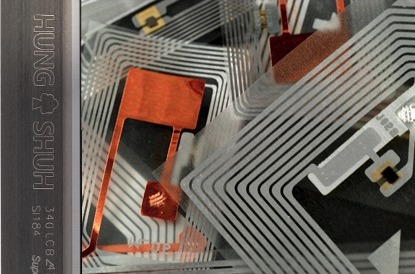

Widely used for(1920*590)

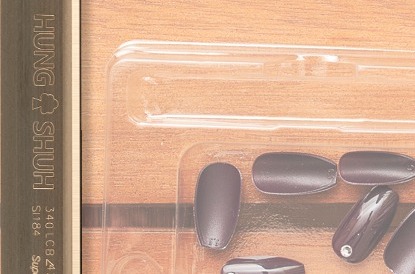

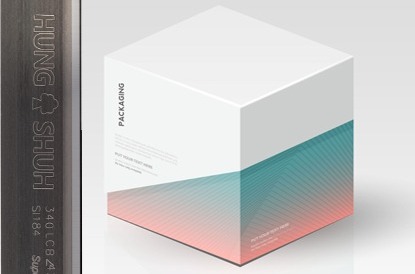

PE, PET, PVC, PP plastics, various blister packs, laminated paper, composite materials, films, synthetic rubber, leather, thin wood boards, flexible electronic boards, carbon fiber fabric.
Whyuse a Fine Grinding Rule for cutting?
-

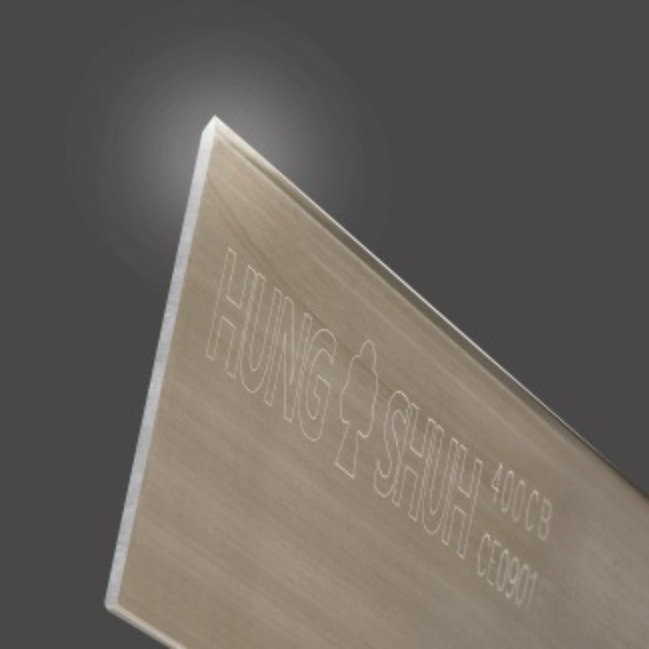

The Super Ground Rule is specifically developed for high-precision and high-quality cutting applications. Its versatility depends on the user's needs and positioning.
-
The blade edge of the Super Ground Rule is designed with special craftsmanship, making it more precise than standard blades. It meets the high standards required in various industries.

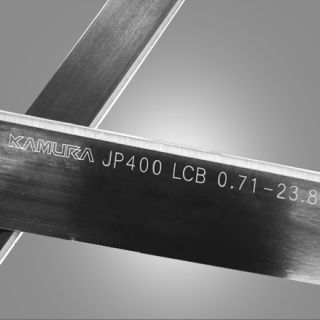

Specification
-

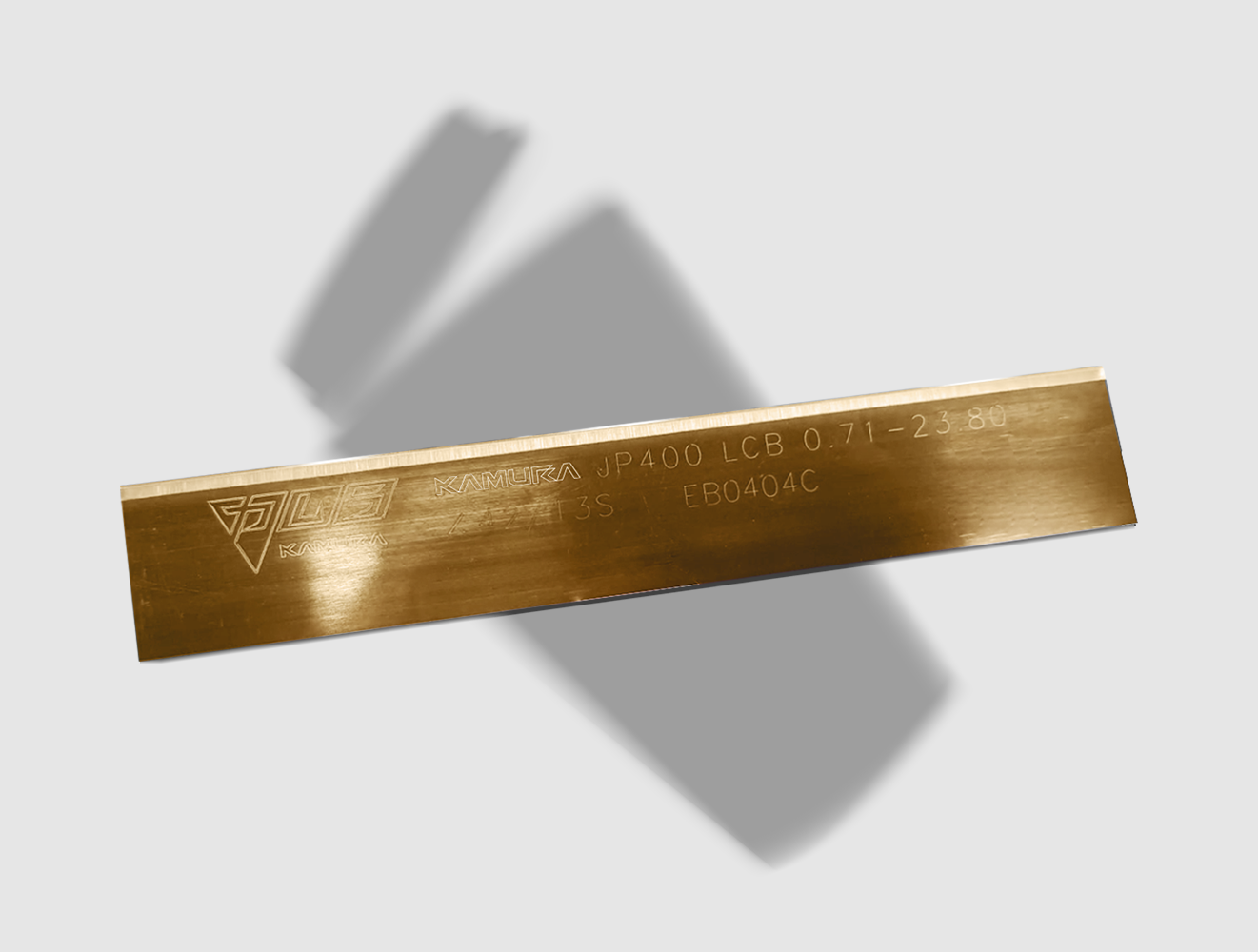

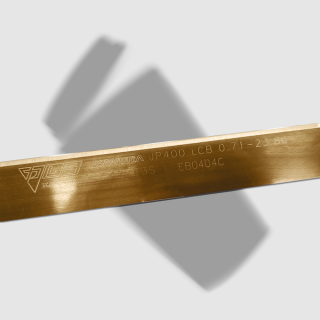

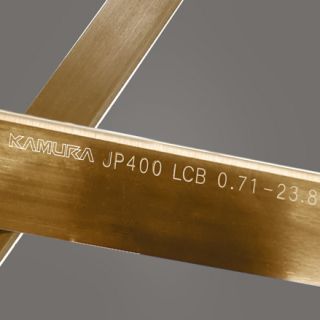

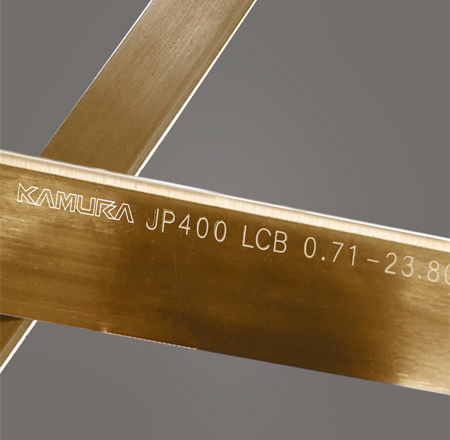

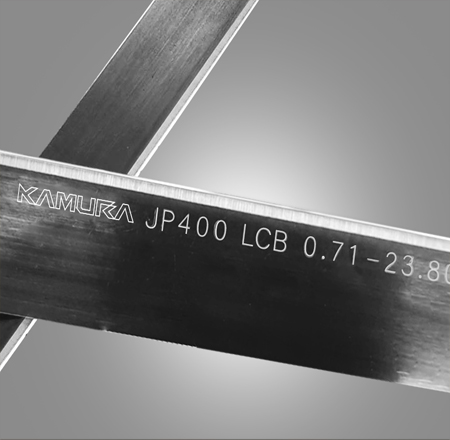

FG450 / JP450
Bevel Profile : CB / LCB
Thickness :0.53/0.71/1.06/1.42
Hight: 22.00~23.80Angle: 32/42/52
Body hardness: HV450
Edge hadness: HV670 / 700 -
FG380 / JP380
Bevel Profile : CB / LCB
Thickness :0.53/0.71/1.06/1.42
Hight: 22.00~23.80Angle: 32/42/52
Body hardness: HV380
Edge hadness: HV640 -
FG340 / JP340
Bevel Profile : CB / LCB
Thickness :0.53/0.71/1.06/1.42
Hight: 22.00~23.80Angle: 32/42/52
Body hardness: HV340
Edge hadness: HV600
